E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600

  • 1
  • 2

Brand Name : AOXUANZG

Model Number : WC67Y-30T1600mm

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $5500-$5900/unit

Payment Terms : L/C, T/T, Western Union, D/P, D/A

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Material / Metal Processed : Carbon/Stainless steel/Iron/Aluminum metal steel plate

Controller : Nnajing Estun E21

Machine TYPE : Torsion Bar press brake

Machine Pressure : 300KN

Throat Depth : 320mm

RAM Stroke : 140mm

Open Height : 395mm

Motor : 4kw

Weight : 1.8T

Bending width : 1600mm

Contact Now

HYDRAULIC PRESS BRAKE

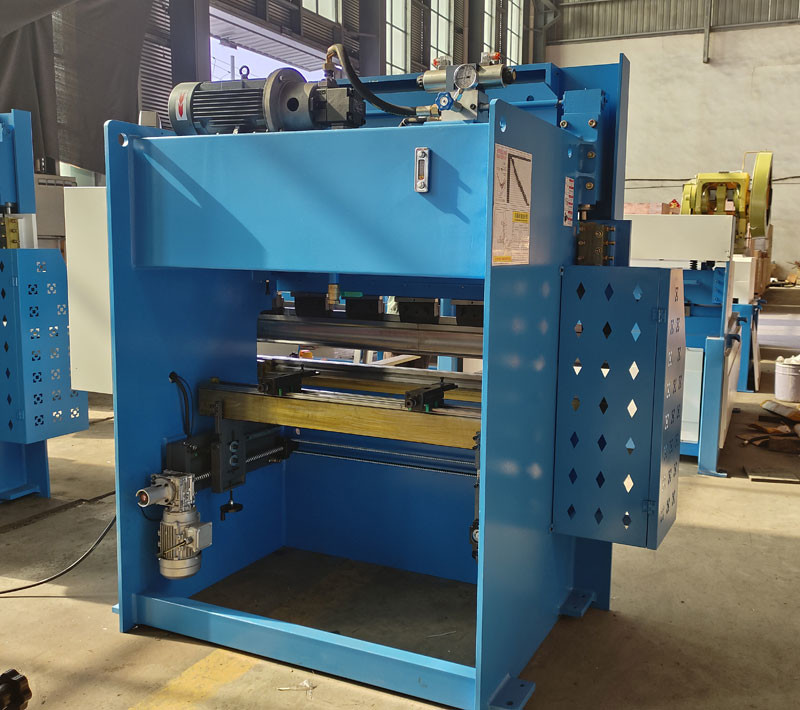

1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.
E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600

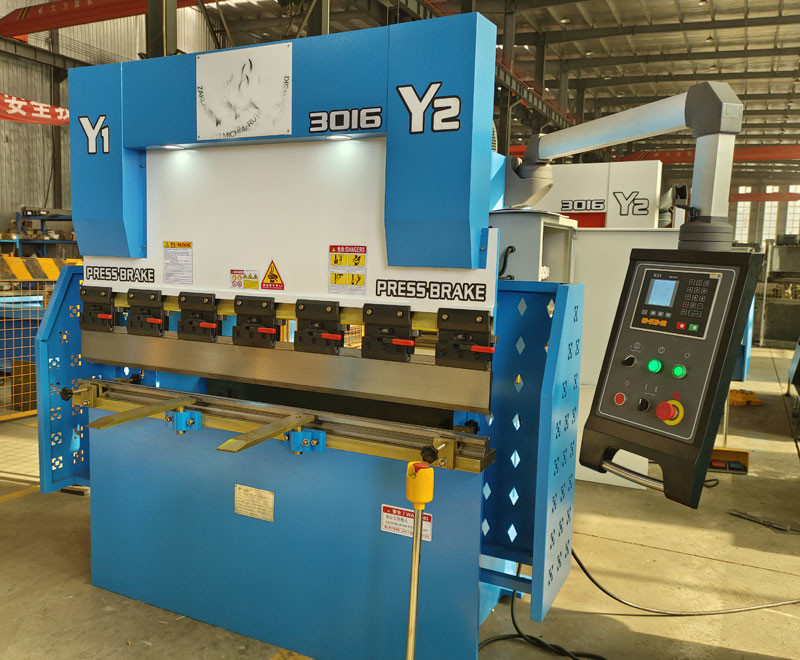

E21 Controller Press Brake
1. The X-axis and Y-axis are programmed by the NC E21 system to achieve accurate positioning of the inverter.
2. WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.

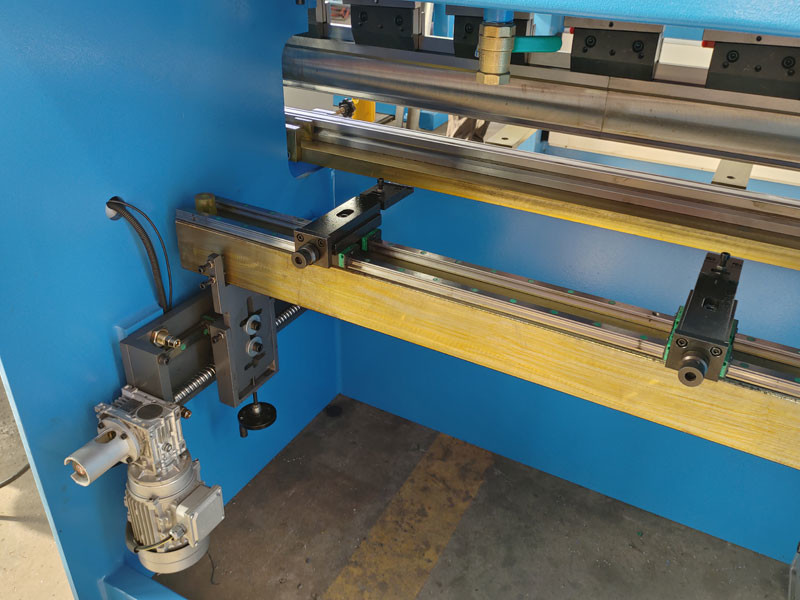

3. Rear Stopper and upper gliding block are both fitted with coders, for a more accurate display for positions of rear stopper and upper gliding block in coopeartion with digital display system, thus to further increase the operating precision of this machine.



Technical Parameters:
E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
    (mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150




The standard cofiguration:

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional

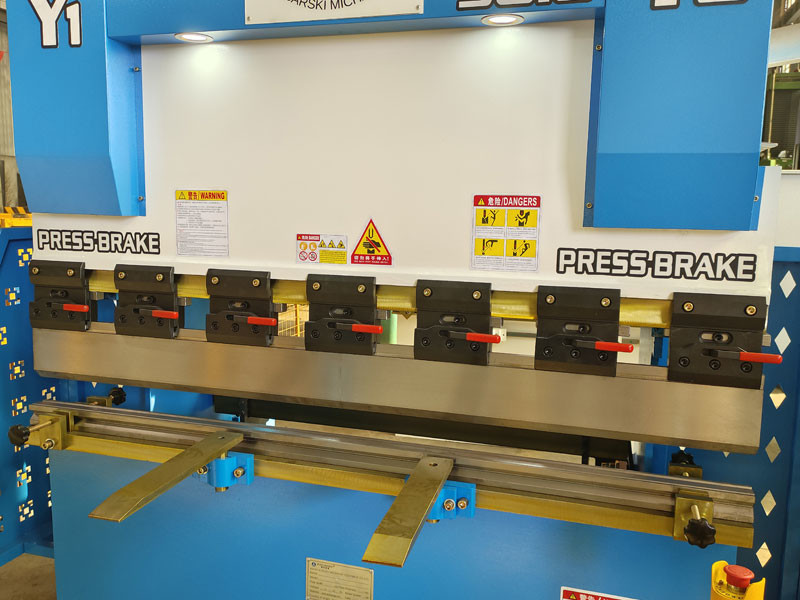

Quick mold clamping device



Details:



E21 Controller
Name: E21 Controller
Original: China Estun
HD LCD display, with both Chinese and English language options . X, Y-axis intelligent positioning.

E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600E21 Nanjing 30 Tons Hydraulic Press Brake Bending Machine Small NC Smart Hydraulic Press Brakes 1600



Delivery:

20 work days after deposit.





Packing:

Wrap film around the machine, put in the Export wooden case.





Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
