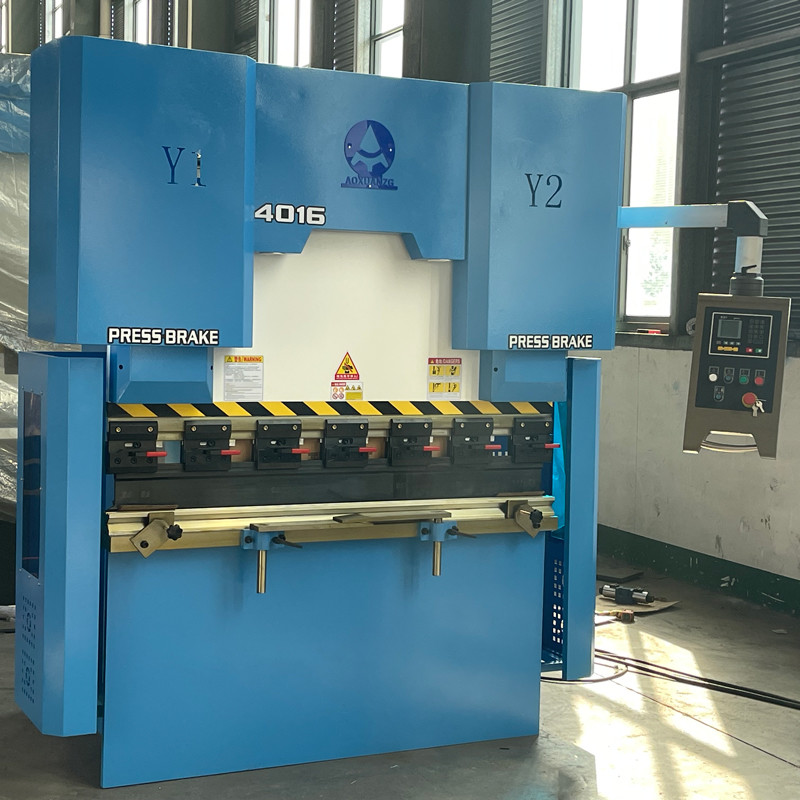

40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller

Brand Name : AOXUANZG

Model Number : WC67Y-40T1600

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $6568-$7052/unit

Payment Terms : L/C, T/T, Western Union, D/P, D/A

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Raw Material : Sheet / Plate

Material / Metal Processed : Carbon/Stainless steel/Iron/Aluminum

Control System : E21 controller

Nominal Pressure : 400KN

Worktable Length : 1600mm

Distance Between Housings : 1080mm

Throat Depth : 200mm

RAM Stroke : 80mm

Max. Open Height : 190mm

Size : 2200*1460*2100mm

Weight : 1.7T

Origin : Maanshan, Anhui, China

Contact Now



Press brake is a kind of machine specially in bending plates, mainly used in automotive manufacturing,

kitchen appliance manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry,

mechanical manufacturing.

Bending dies can be designed and changed according to customers' different needs.


Features:

1. The main machine adopts the structure of series WC67Y hydraulic press brake;


2. High precision, high efficiency CNC Torsion Bar Synchro Press Brakes;


3. Holistic welding structure;


4. Stabilizes left and right balance with help of the mechanical Torsion Bar;

40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller



The standard cofiguration:

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional)
Quick mold clamping device

40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller




Technical Parameters:
40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
    (mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900



Certifications:
40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller


Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
Our Company:

40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller


40T 1600mm Long CNC Metal Steel Plate Press Brake With Torsion Bar E21 Controller

FAQ:

1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance: Insurance: Origin, and other export documents where required.

2. What is the average lead time?
For samples the lead time is about 7 days. For mass production the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or Alipay:30% deposit in advance, 70% balance before shipment.

4. What is the product warranty?
The warranty period is 13 months after the bill of lading date. We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.

5. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

6. How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.

7.Are you a manufacturer? Can we come and visit your factory?
Yes, we are manufacturer. You are welcome to visit the factory, and we will introduce the products you are interested in in detail on the spot.
