Custom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/Min

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

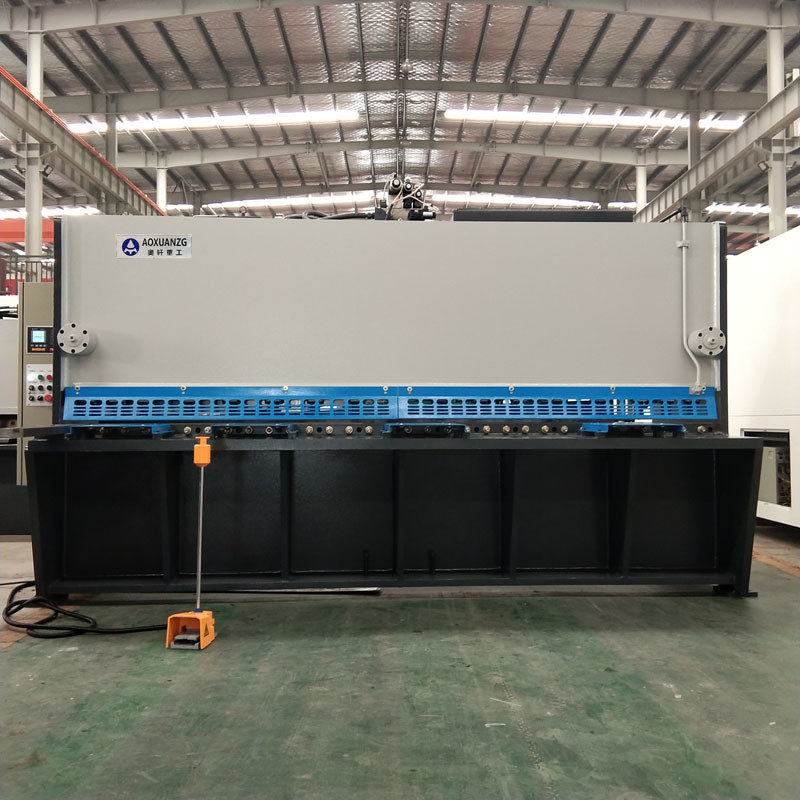

Custom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/Min

  • 1
  • 2
  • 3

Brand Name : AOXUANZG

Model Number : QC11K-4*2500

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, D/P, D/A

Supply Ability : 500sets/Year

Delivery Time : 20-30 days

Packaging Details : Standard export packing

Estun : E21s

Type : Hydraulic Guillotine type cutter

Thickness : 4mm

Cutting angel : Can be adjust

Stroke times : 16 times/min

Width : 2500mm

Contact Now

High-End Custom CNC E21s Hydraulic Guillotine Cutting Shears Machine For Thick Plate



Product Application
1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany,
3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.


Technical Parameters:

Model Thickness(mm) Cutting Length(mm) Cutting Angle(°) Material Strength (KN/CM) Stroke (times/min) Power(kw) Dimension(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 2° ≤450 5 15 6500*2100*2300
12×2500 12 2500 2° ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 2° ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 2° ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 2° ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 2° ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 2° ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 3° ≤450 8 22 3440*2300*2500
20×3200 20 3200 3° ≤450 8 22 4150*2350*2700
20×4000 20 4000 3° ≤450 5 22 4850*2350*2700
20×6000 20 6000 3° ≤450 4 22 4850*2350*2700
25×2500 25 2500 3° ≤450 8 37 3200*2700*2900
25×3200 25 3200 3° ≤450 5 37 4200*2700*2900
30×2500 30 2500 3° ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 4° ≤450 3 75 3200*3300*3000
40×3200 40 3200 4° ≤450 3 90 4300*3300*3200





Custom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/MinCustom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/Min

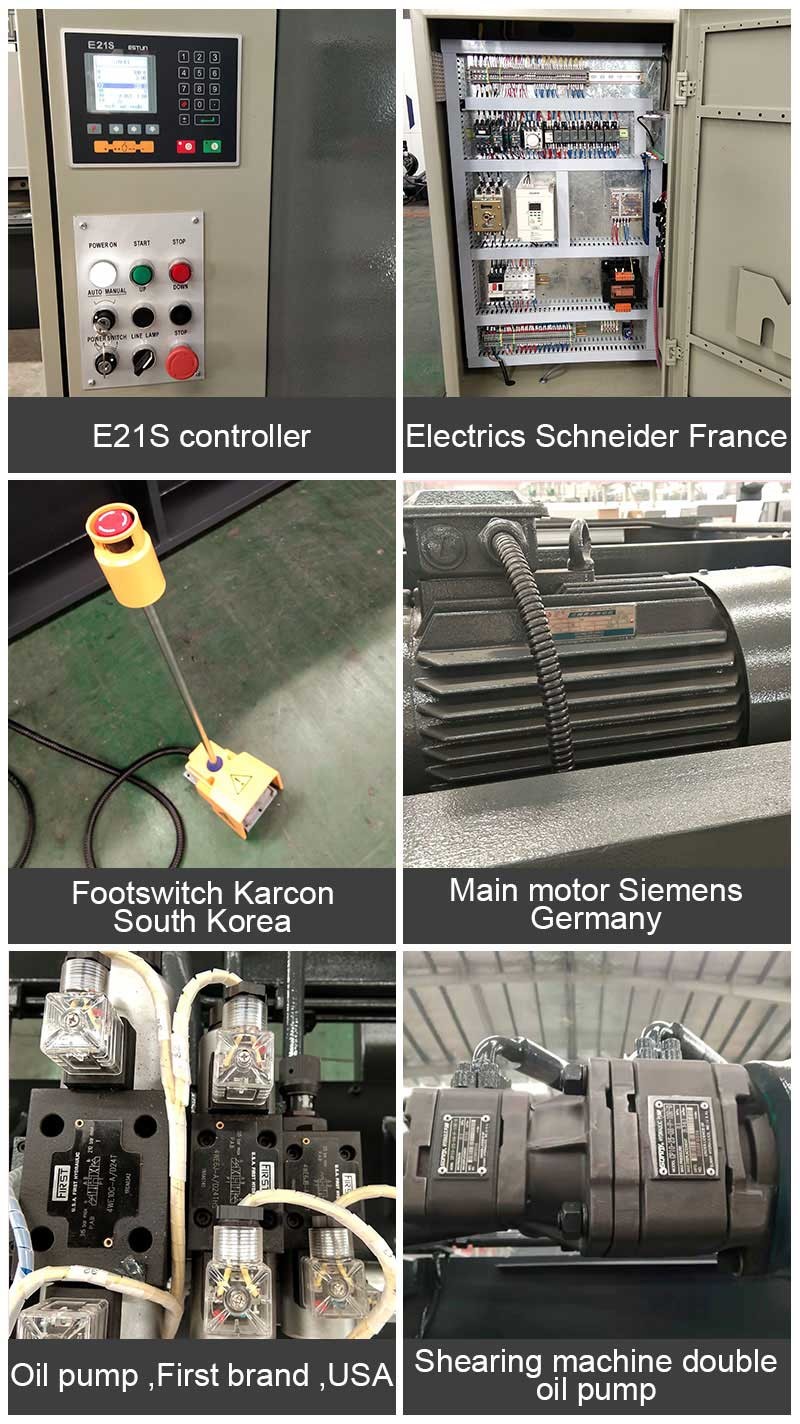

Standard Accessories

1. E21S-Estun: digital monitor to display the position of the back gauge
2. REXROTH, Germany hydraulic system
3. SUNNY, USA oil pump with slide-in pipes joints
4. Back gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
5. Motorized adjustment of blade gap and shearing angle
6. Hydraulic hold downs with sequential operation
7. Moveable foot switch
8. Finger guard
9. Interchangeable blades with four cutting edges
10. One set of standard blade (upper and lower) materials is 6CrW2Si
11. Front support arms with length 1000mm (at least 3pcs)
12. Ball worktable ,reduce the contact between sheet plate and machine work table
13. Often-used internal hexagonal key spanner for adjusting blades
14. Comprehensive instruction & maintenance manual





Custom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/MinCustom E21s CNC Hydraulic Guillotine Cutting Shear Machine 16 Times/Min
