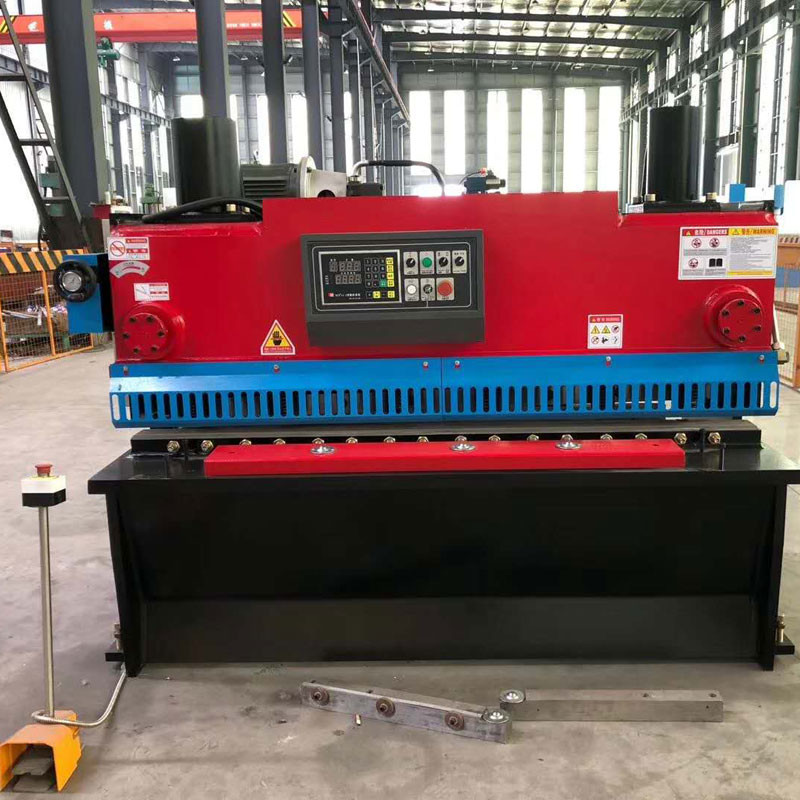

6x1600mm Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder

  • 1
  • 2

Brand Name : Aoxuanzg

Model Number : QC12Y

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : $9800-$12300/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 20-30 working days

Packaging Details : Standard export packing

Rated power : 7.5kw

Dimension(l*w*h) : 1850*1800*1900mm (L*W*H)

Cutting material : Metal .alloy Metal .aluminum

Cutting thickness : 6mm

Max. cutting width (mm) : 1600

Main motor : Siemens

Contact Now

6*1600mm Carbon steel Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder



The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.



Technical Parameters:
6x1600mm Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder​

Model

Thickness

(mm)

Cutting Length

(mm)

Cutting Angle

(°)

Material Strength

(KN/CM)

Stroke

(times/min)

Power

(kw)

Dimension

(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 2° ≤450 5 15 6500*2100*2300
12×2500 12 2500 2° ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 2° ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 2° ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 2° ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 2° ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 2° ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 3° ≤450 8 22 3440*2300*2500
20×3200 20 3200 3° ≤450 8 22 4150*2350*2700
20×4000 20 4000 3° ≤450 5 22 4850*2350*2700
20×6000 20 6000 3° ≤450 4 22 4850*2350*2700
25×2500 25 2500 3° ≤450 8 37 3200*2700*2900
25×3200 25 3200 3° ≤450 5 37 4200*2700*2900
30×2500 30 2500 3° ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 4° ≤450 3 75 3200*3300*3000
40×3200 40 3200 4° ≤450 3 90 4300*3300*3200





Blade Adjust and Cutting Precision:
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Function of shearing in sections, function of aligning with light. Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.



6x1600mm Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder
